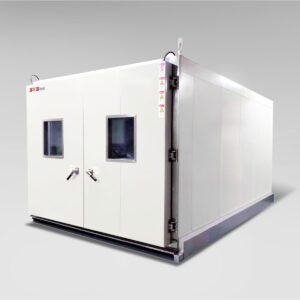

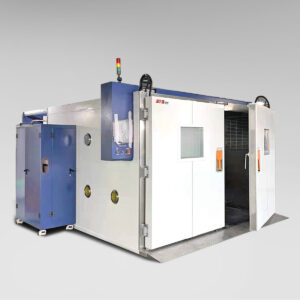

The walk-in or drive-in STS temperature/climatic test chambers are designed by our experienced sales and project engineers according to your test requirements. A standardised modular system is available in all sizes with on-site installation or basic delivery. The walk-in/drive-in chambers are outstandingly suited for testing bigger components and final products in all sectors (automotive, electronics, power, aviation, pharmaceutics and so on).
| Model | WI-6-CP | WI-11-CP | WI-15-CP | WI-48-CP | WI-66-CP | |
Test Space Dimensions（mm） | W（wide） | 2000 | 2500 | 3500 | 5000 | 5500 |
| H（high） | 2200 | 2200 | 2200 | 2400 | 2400 | |
| D（deep） | 1500 | 2000 | 2000 | 4000 | 5000 | |
Exterior Housing Dimensions（mm） | W（wide） | 2800 | 3500 | 4550 | 6100 | 6800 |
| H（high） | 2600 | 2600 | 2600 | 2800 | 2800 | |
| D（deep） | 1800 | 2300 | 2300 | 4300 | 5300 | |
| Capacity | L（liter） | 6.6 | 11 | 15.4 | 48 | 66 |
| Temperature Range( °C ) | -70°C ~ +150°C | |||||
| Humidity Range( RH ) | 20% ~ 95% R.H. | |||||
Machine Performance | Temperature and Relative Humidity Fluctuation | ±0.5℃; ±2%R.H. | ||||
| Temperature and Relative Humidity Accuracy | ±1.0℃; ±3%R.H. | |||||
| Display Accuracy | T: 0.01℃; ±0.1%R.H. | |||||
| Heating Time (min) | 30min | |||||
| Cooling Time (mins) | -40℃/50min;-20℃/30min | |||||
Material | External Material | SUS#304 stainless steel plate/painted steel plate | ||||
| Internal Material | SUS#304, 316 stainless steel plate | |||||
| Insulation Material | Polyurethane waste foam (A: 50mm; B: 100mm; C: 150mm) | |||||
Structure System | Circulatory System | Multi-Blade Fan Sirocco Fan | ||||
| Heating System | SUS#316 Stainless Steel High Efficiency Electric Heater | |||||
| Humidification Method | Surface Evaporation | |||||
| Refrigeration System | Compressor + Fin Evaporator + Water-Cooled/Air-Cooled Condenser | |||||
| Dehumidification Method | ADP critical dew point cooling and dehumidification method | |||||
| Control System | Temperature and humidity controller (TEML.RKC.UNIQUE.OYO) + solid state relay | |||||
| Other Accessories | Multilayer tempered glass window, test hole (φ50mm), action indicator, interior lighting | |||||
| Safety Devices | Circuit system load protection, compressor load protection, control system load protection, over-temperature load protection, warning light | |||||
| Power Supply | AC 1φ / 3φ, 220V/380V±10%, 50/60HZ | |||||
| Remark | Can be customized according to customer requirements to meet customer requirements | |||||
1. Machine group
2. Air treatment units
3. User Interface
4. Panel structure
5. Easy assembly on site
6. Easy disassembly, relocation and assembly of the equipment, if necessary
1. Single door
2. Stainless steel floor with non-slip system
3. Mechanical closure
4. Digital thermostat with independent sensor
5. Ethernet and USB port
1. Heated inspection window
2. Double door
3. Notched porthole
4. Remote air-cooled condenser
5. Light modules
6. Optional Version:
A. Version for corrosion testing
B. Version for airbag shoot
C. Explosion-proof version
D. Version for vibration testing
